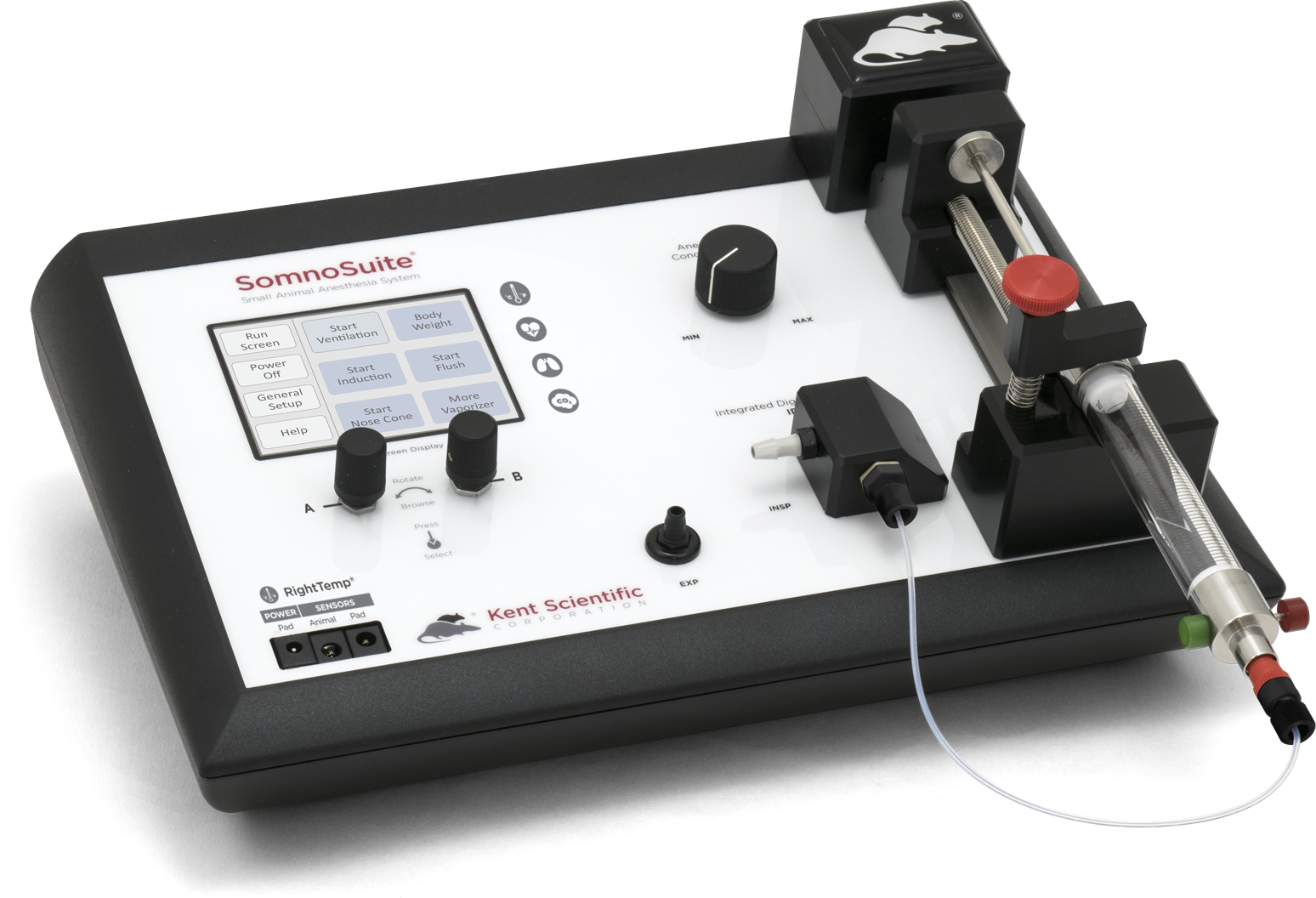

SomnoSuite Low-Flow Anesthesia System
SomnoSuite is our innovative low-flow anesthesia delivery system designed specifically for mice and rats. Unlike traditional vaporizers, the SomnoSuite is engineered with a precision syringe pump and integrated digital vaporizer which uses either room air or compressed gas to deliver anesthesia at low flow rates proportionate to the animal’s size. Using less anesthesia not only benefits the animal during procedures, but significantly reduces the risk of exposure to lab personnel from waste anesthesia gas.
SomnoSuite (RightTemp® : INCLUDED) SS-01
Features & Benefits
- Integrated Digital Vaporizer Auto calculates flow rate based on animal weight
- Built-In Air Compressor Uses room air or compressed gas
- Flow Rates from 25 mL to 1 L Saves money by using less than 1mL of isoflurane/hour with typical use
- Intuitive Touch Screen Control The easy to use multi-parameter touch screen display shows vital signs
- Safer for the Animal Digital dial control for precise delivery and safety
- Safer for the Technician With such a small amount of anesthetic and oxygen used there is very little waste gas exposure risk
- Induction Chamber Flush Minimizes waste anesthetic gas exposure
- No Servicing or Calibration Needed Cost-effective, reliable equipment
- Easily Integrates Into Stereotaxic Setups Use your own anesthesia mask or use one of ours
- Modular Capability Select modules for a variety of functions
- Smaller Footprint Significantly smaller footprint compared to traditional vaporizer and stand, further reduced by combining additional modules including RoVent and MouseSTAT
- Multi-Animal Capability Greater efficiency – Our clinical department will be pleased to review your study protocol to confirm that our product will meet your specific study requirements
- Real-Time Recordings
- 5 Safety Alarms
- Lab Chart Compatible
FEATURED REVIEW:
SomnoSuite Videos
See why the SomnoSuite low-flow anesthesia is safer for you and your animals, offering higher precision over traditional systems.
See a detailed demonstration of how to set up and operate the SomnoSuite low-flow anesthesia system, which provides both automated and manually adjustable options for precise airflow and anesthesia delivery based on animal body weight.
All Systems Include
- Integrated touch-screen display
- Internal memory for data storage
- Mini-USB for data output
- Anti-spill, anti-vapor bottle top adapter
- Two accessory adapter to connect two mice to anesthesia masks
- Scavenging filter
- 1 Charcoal canister
- 1-Year 100% Parts & Labor Standard Warranty
|
SomnoSuite®
|
|---|
| Flow Rate | 0 to 1 L/min |
| Two Modes | Vaporizer: Internal Pump or Compressed Air |
| Max. Pusher Force | Greater than 36 kg |
| Carriage Position Detection | +/- 0.2 mm |
| Anesthetics | Isoflurane and Sevoflurane |
| Multi-Animal Capability | Yes |
|
FREE RightTemp®
|
|---|
| Resistance | 2252 ohm |
| Tolerance | +/– 0.2° C |
| Accuracy | 25°C to 45°C |
| Operating Temp. | –40°C to 80° C |
| Sensor Diameter | Ball Tip Diameter: 1.65 mm max Shaft: 1.5 mm |
| Time Constant | 10.0 seconds |
| Dissipation Constant | 0.75 m/W (° C) |
Extend Your SomnoSuite’s Capabilities with the Following Add-On Modules
Start with the modules you need now and add on later. All modules are sold separately.
|
Automatic Ventilator Module
RoVent®
|
|---|
| Control Modes | Volume Controlled, Pressure Controlled |
| I:E Ratio | 1:1 to 1:5 |
| Sigh Pressure | 2 to 30 cmH20 |
| Respiratory Rate Range | 20 to 350 bpm |
| Max Inspiratory Flow | 1.5 SLPM |
| Weight Range | 3g to 1,250g |
| Multi-Animal Capability* | Yes |
| *Our clinical department will be pleased to review your study protocol to confirm that our product will meet your specific study requirements. | |
|
Pulse Oximeter & Heart Rate Monitor Module
MouseSTAT®
|
|---|
| Heart Rate | Up to 900 bpm |
| Resolution | 1% |
| SpO2 Range | 70 to 100% |
| Alarms | 5, Programmable |
| Data Export | Yes |
| SpO2 Sensors | Soft Touch Paw Sensors (standard) Large Animal Clip Sensors Pup Sensors |
|
End-Tidal CO2 Monitor Module
CapnoScan®
|
|---|
| Transducer Type | Sidestream Sensor | ||||
| Sample Rate | 50 mL/min. +/- 10mL/min. | ||||
| Initialization Time | < 15 seconds | ||||
| Measurement Range | 0 to 16%, 0 to 120 mmHg | ||||
| Rise Time | < 60 ms | ||||
| Resolution |
|
||||
| Accuracy | 0 to 150 mmHg, ±2 mmHg |
How Much Could You Save?
Calculate your savings using a
SomnoSuite® Digital Vaporizer vs. Traditional Vaporizer:
Calculation Based on:
- Flow rate of 0.2 L/min for SomnoSuite & 2 L/min for Traditional
- Iso Concentration of 2%
- Annual calibration cost of $200 – $300* for Traditional.
- Average cost of a typical 250 mL bottle size of Iso is $35:
Volume x $35 x 4 = $Cost/year - Compressed gas fees vary from academia to pharma. Most tanks are rented with fees for tank fill/replacement averaging ~ $1,000/year.
- Calculations are based upon a specific customer request, and can be adjusted to other specific uses.
Uses Less Anesthetic Gas
The SomnoSuite is specifically designed to be used with mice and rats. It is pre-calibrated for use with both isoflurane and sevoflurane. Typical “human-sized” vaporizers on the market today waste more anesthetic gas than you would actually use in a given procedure. Using the SomnoSuite during a typical 30-minute procedure at a gas concentration of 2.5% isoflurane results in using less than .3 mL of isoflurane! It is capable of anesthetizing up to 2 mice simultaneously. The internal pump allows you to use room air or you may hook it directly to a compressed gas source. If you need to anesthetize more than two mice or multiple rats, check out our traditional multi-animal systems, capable of anesthetizing up to 6 animals.
With the RoVent Automatic Ventilator add-on module, the vaporized anesthetic is delivered directly to the animal along the inspiratory line coming from the ventilator. This close proximity of the vaporized gas to the animal’s lungs allows you to use far less anesthetic than traditional vaporizers, which require hook-up on the back side of the ventilator.
